Cisco Catalyst WS-C3560X-24P-L Gigabit Ethernet Switch – DA9288

Category:

Product Description

WS-C3560X-24P-L Overview

Cisco Catalyst WS-C3560X-24P-L is 24 Gigabit Ethernet POE+ ports standalone switch in LAN base feature set with no stacking option. Four optional network modules and license-base software feature provide flexibility, scalability and feature extensibility in order to reduce the cost of development of business needs. WS-C3560X-24P-L support IEEE802.3at standard to allocate up to 30W power on each port in total 435W POE budget to power up IP phones, wireless and video; customers can specify the power setting on individual port in command line setting. LAN base feature set offers up to 255-Vlans and comprehensive layer 2 feature with static routing and SVI interface supporting.

WS-C3560X-24P-L is designed for enterprise access layer switching; however, customers can transparently upgrade the software feature to by purchasing either IP base license or IP services license to activate layer 3 capability, 1005 VLans supporting. WS-C3560X-24P-L comes with one default power supply module, customers can purchase additional power supply insert into power supply bay 2 in order to power redundancy.

WS-C3560X-24P-L

Cisco Catalyst 3560-X Series Switch
  • 24 * 10/100/1000 Gigabit Ethernet POE+ ports with optional uplink network modules
  • 435W POE power budget with up to 30W per port
  • Dual redundant, modular power supplies and fans
  • LAN base feature set with upgrade option to IP base or IP service
  • Layer 2 switching with static routing and SVI supporting
  • 64MB flash and 256 memory (DRAM)
  • USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port

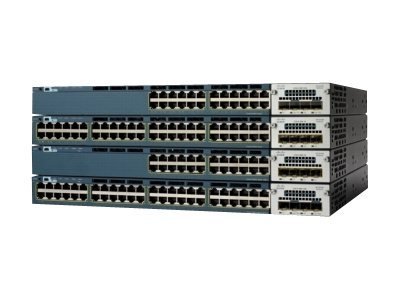

Cisco Catalyst WS-C3560X-24P-L

Cisco Catalyst 3560-X Series Switches support 4 optional network modules for uplink ports (Figure 1);
The default switch configuration doesn’t include the uplink module;
When purchasing switch, customers have flexibility to choose any group of network modules described below:

Product NumberProduct Description
C3KX-NM-1GFour GbE port network module
C3KX-NM-10GTwo 10GbE SFP+ ports network module with four physical ports with two SFP+ and two regular SFP ports
C3KX-NM-10GTTwo 10GB-T ports network module
C3KX-SM-10GService Module with two 10GbE SFP+ ports network module for Netflow and MACsec encryption
