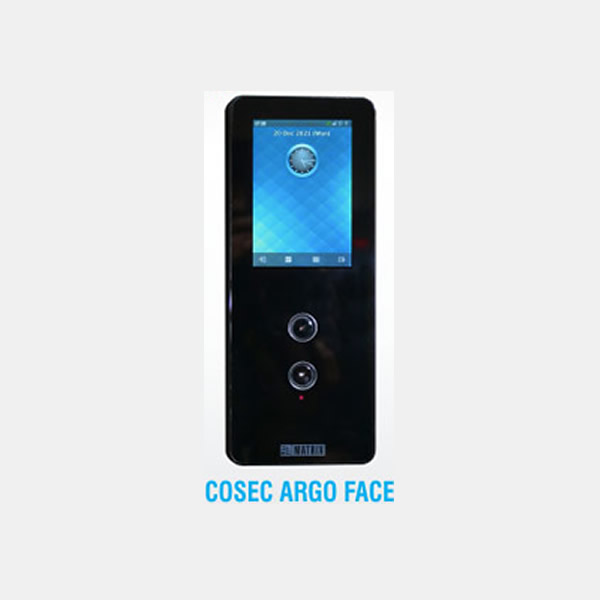

COSEC ARGO FACE

APPLICATIONS

  • Time-Attendance
  • Visitor Management
  • Contract Workers Management
  • Access Control
  • Cafeteria Management
  • Job Processing and Costing

Description

KEY FEATURES

Multiple Credentials

  • Face
  • Bluetooth
  • RFID &
  • PIN
  • Dual Verification for High-Security Applications

Deep Learning Technology

  • Algorithm with Faster Pre-processing and Face Recognition
  • High Identification Speed
  • Greater Accuracy & Highly Reliable
  • Improved Productivity and Security

Live Face Detection

  • Prevent Spoofing Attack Caused by Masquerading
  • Higher Security

Adaptive Face Enrollment

  • Automatic Real-time Face Enrollment over a Time Interval
  • Eliminates Re-enrollment

Aesthetic Look and Design

  • 3.5” Capacitive IPS Touch Screen
  • Gorilla Glass
  • Water and Dust Resist with IP65
  • Impact Resistant and Scratch Proof with Gorilla Glass 3
  • Vandal Resistant with IK06

Advanced Connectivity

  • Bluetooth, Wi-Fi, PoE, GSM/VoLTE
  • Low IT Infrastructure Cost
  • Future Proof
  • Enhanced Performance

Higher User Template and Event Storage Capacity

  • 50,000 Users
  • 200,000 Face templates (1:N)
  • 100,000 Smart Cards (1:N)
  • 500,000 Event Buffer

Encrypted Communication

  • SSL Enabled
  • Highly Reliable
  • Snoop-proof and Hack Proof

TECHNICAL SPECIFICATIONS

CREDENTIAL
Human FaceYes
PINYes
BLE – MobileYes
CAPACITY
User Profiles50,000
Face Templates200,000
Max. Templates Per User30
Event Logs500,000
FACE RECOGNITION
AlgorithmDeep Learning-based Face Recognition
Fake Face DetectionYes
Face Identification1:200,000 in < 1 sec
1:1 in < 0.5 sec
Face EnrolmentEnrolment Station
Upload Images
Recognition Distance30cm – 120cm (0.3m – 1.2m)
Recognition Height140cm – 198cm (1.4m – 1.98m)
GENERAL SPECIFICATIONS
Dimensions (HxWxD)186mm x 74 mm x 50mm
(7.3” x 3” x 2 “)
Weight650gms (1.433 lbs)
Display3.5″ IPS LCD (Touch Screen)
Display Resolution480 x 320 Pixel
Gorilla GlassYes (Gorilla Glass 3)
CPUQuad-Core ARM Cortex-A7 @ 1.5 GHz
GPUBuilt-in 2 TOPS Neural Network Computing Performance
RAM2 GB DDR4
Flash Memory16 GB eMMC
SD CardNo
Tamper DetectionYes
BuzzerYes
IR LEDsYes
Ingress ProtectionIP65
Vandal ProofIK06
CertificateCE, FCC, BIS, UL, RoHS
Operating Temperature0°C to 50°C
Storage Temperature-20°C to 60°C
Humidity5% to 95 % RH Non-Condensing
CAMERA
RGB Camera2MP Surveillance Grade, IR Blocked
Infrared Camera2MP Surveillance Grade, IR Band Pass
Camera SensorsSONY IMX 307, EXMOR Technology, STARVIS Series
COMMUNICATION
EthernetYes (10/100 Mbps – 1 port)
PoEYes (IEEE 802.3 af)
WiFiYes (802.11 b/g/n)
3G/4G/LTEYes (Additional USB Modem)
BLEYes (8m Range)
USBYes (USB 2.0)
Micro USB-Type B
INTERFACE
Exit Switch InterfaceYes
External Reader SupportYes (MATRIX and 3rd Party)
External ReaderInterface

  • RS232
  • Wiegand
  • Power
  • 12VDC @ 0.5A

LED and Buzzer Control
Allowed – GREEN LED

WiegandYes (Selectable IN/OUT)
IN: 26 Bit format OUT:
Configurable
Door Lock RelayYes (30VDC @ 2A, Dry Contacts NO/NC/COM)
Door Lock PowerInternal PoE Power: 12VDC @ 0.250 A
Internal Adapter Power 12VDC @ 0.5 A
External Power 12VDC @ 2A
INSTALLATION
Wall MountYes – Plastic Back Cover with Screws
Flush MountYes – Metal Bracket with Screws
Power Adapter12VDC @ 2A (CE, FCC, UL, BIS)
Card
Smart CardsMIFARE Classic® and NFC Tag and HID iCLASS
Proximity CardsEM Prox and HID Prox
(Separate variant for each card type. HID PROX requires HID iCLASS type)
