Description
PRODUCT INFORMATION
Screen Size : 75inch
Dimension(mm) 1735.*1069.25*107
Package(mm) 1858*220*119
VESAMount 600*400
Net weight(kg) 60
Gross weight(kg) 76
Power Consumption ≤300W (withoutOPS)
Standby Consumption ≤0.5W
DISPLAY INFORMATION
Panel Type: a-SiTFT-LCD
Aspect Ratio: 16:9,WideSXGA
Resolution: 3840*2160P
Viewing Angle: 89/89/89/89
Brightness: 350cd/m2
Active Area(mm): 1651*929.5
Contrast Ratio: 1400:1
Display Color: 8bit,1.07B
Field Frequency: 60Hz
Service Lifetime: ≥50,000hours
Surface Protection: 4mmtempered glass, Anti-glare
TOUCHPANEL
Sensing Type :InfraredTouchScreenSupportmulti20pointtouch
Touch Output : Full-speed A type USB(Driver free)
Touch Object : Finger,touchpenorotherdiameter≥5mmnon-transparencyobject
Response Time : <8ms
Touch Accuracy : ≦2mm Speeds 120Mbps
TVSPECIFICATION
ATV : NTSC,PAL,SECAM
DTV : DTMB
Speaker : 15W+15W(8Ω)
Operating System: Android6.0
CPU: MSD648CortexA53*41.5GHZ
Memory : 2GRAM
Storage : 32GROM
SD Card : SupportMAX128GSDcard(Fat32format)
WIFI : 1*2.4Gbuilt-inmodule,1*5Gbuilt-in

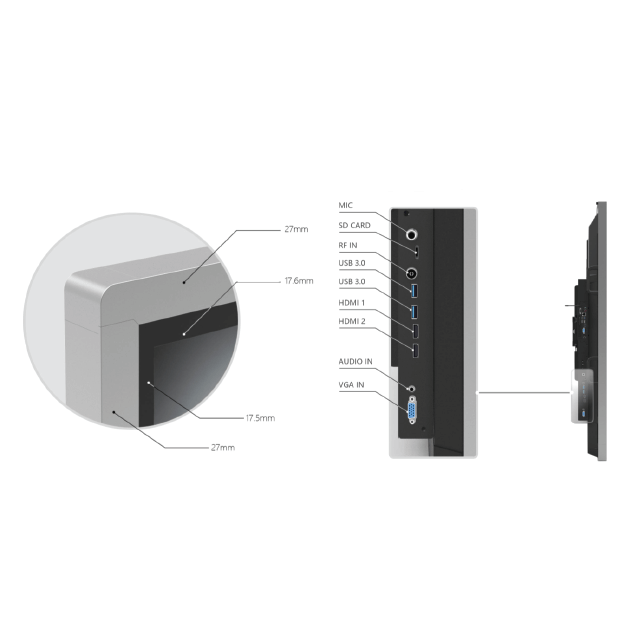

Input Interface : VGA-IN*1 VGA Audio port*1 AV-IN*1 HDMI-IN*4 Ypbpr-IN*1 MIC-IN*1 RF-IN*1

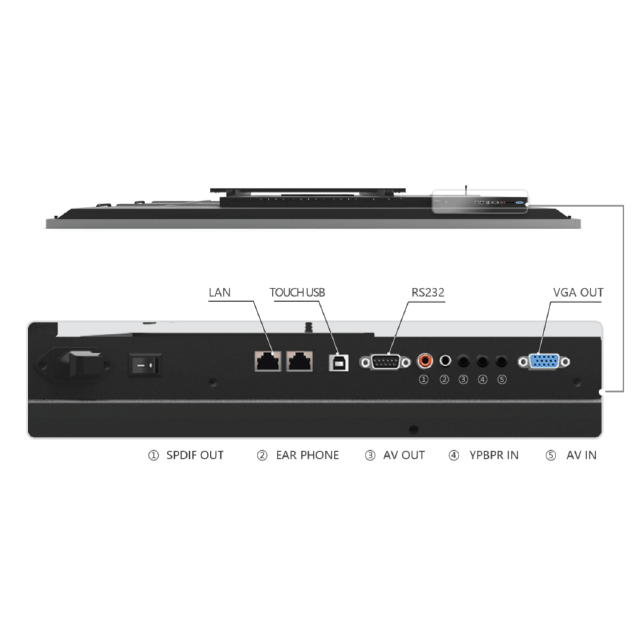

Output Interface : AVOUT*1 Earphone port*1 SPDIF-OUT*1 HDMI-OUT*1
Others Interface (IN/OUT) : RJ45(LAN)port*1 SD card*1 RS232port*1 AndroidUSB2.0*2
Touch USB : USB2.0Aport*1
OPS Computer
Operation System : WIN10(genuine software)
CPU : I54thgeneration
Memory : 4GBRAM
Storage : 128GSSD
Network Support : WIFI,1000mpbsLAN
I/O Interface : USB2.0*2 USB3.0*2 HDMIOUT*1 VGAOUT*1 RJ45(LAN)port*1 LIN-OUT*1 MIC-IN*1
ENVIROMENTAL
Operating Temp. 0℃~50℃
Storage Temp. -10℃~60℃
Humidity 20%~80%
ACCESSORIES
- Whiteboard Software on Android
- Remote Control*1,
- Power Cord*1
- Touch Pens*2,
- Wall Bracket*1
- Wireless Screen Share Device
- Warranty card
- Qualification card
