Slim. Effective. Bold.

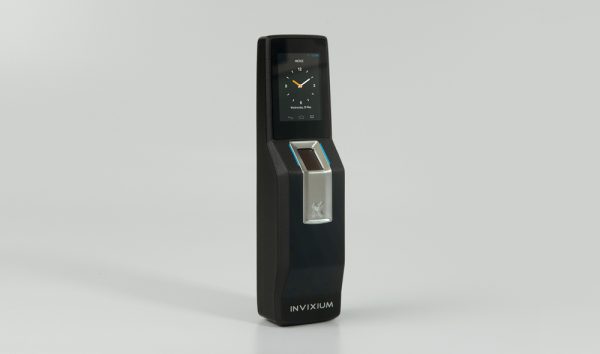

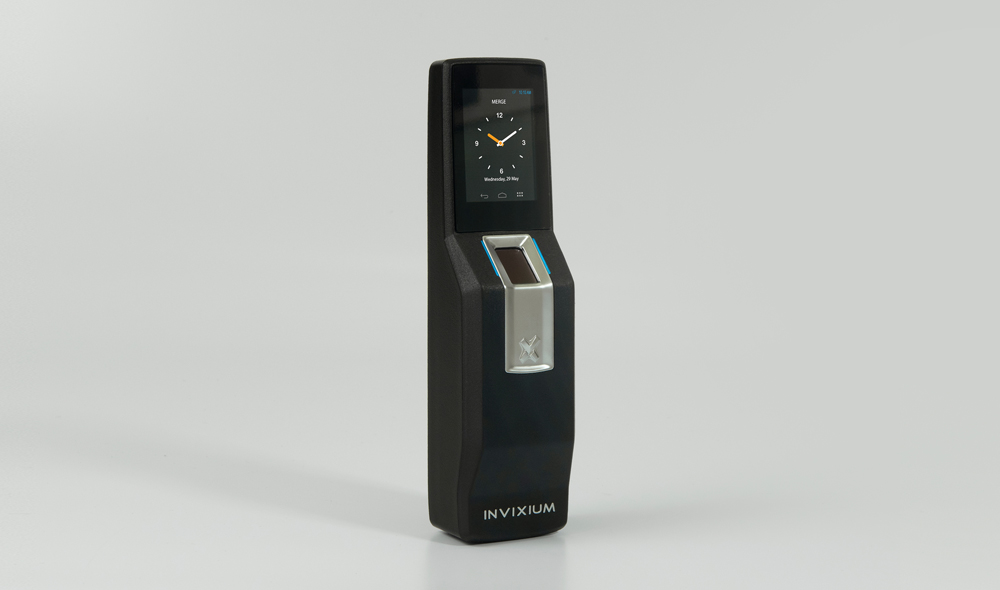

The Indoor Fingerprint Biometric Tracking Device
Corning Gorilla Glass
Provides exceptional performance and protection due to its durability, toughness and scratch resistance. Also used by top brands in the consumer electronics industry, Gorilla Glass ensures elegance and long lasting operation.
2.0” IPS Capacitive Touchscreen
The 2.0” touchscreen can be used for PIN access, enrollment from the device and function key inputs. The in-plane switching (IPS) technology provides a wider viewing angle and stunning colors even in bright sunlight.
Active Thermal Fingerprint Sensor
The innovative razor slim sensor from NEXT enables sensor placement flush on the product surface for a smooth and natural finger placement. Operating on Active Thermal Sensing Technology, it provides a flawless user experience for all finger types.
Anti-Shock Vandal Protection
The built-in accelerometer helps alert any tampering. Configurable based on sensitivity levels, the device can generate various audible to visual warnings (ie. sound an alarm, take a picture from a connected third party IP camera).
One cable (CAT5/6) for power and communication makes installation fast and easy, and also lowers installation costs and maintenance.
|Processor||ARM Cortex A8 – 800 MHz|
|Random Access Memory||512 MB DDR3L|
|Flash Memory – NAND||512 MB|
|Operating System||Android® OS (4.1.2)|
|Serial Communication||RS – 485, USB-Aux|
|Super Strong Protective Screen Cover||Corning® Gorilla® Glass 4|
|LEDs||1 (Power & Status)|
|Audio||Speaker (2 Watts)|
|1: N Users (Records)||5K users (10K biometric records)|
|1 : 1 Users (Records)||25K users (50K biometric records)|
