Description
KEY FEATURES

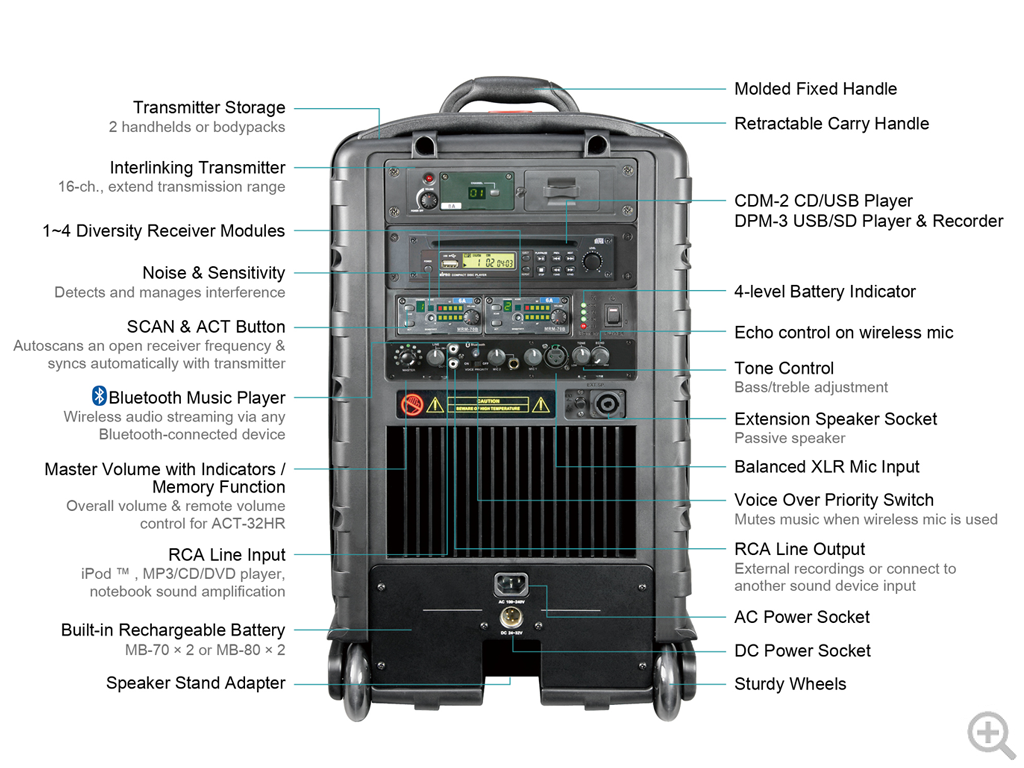

- Robust, rugged enclosure, built-in class D & AB amplifiers system with 10″ woofer and 1.5″ tweeter.
- Up to 4 UHF or ISM band receiver modules and built-in active dual antennas for improved reception distance and stable signal quality.
- Plug-&-play CD/MP3 player, plus certified Bluetooth receiver for music streaming.
- Voice Priority mutes music when a wireless mic is used.
- Echo effect for richer-sounding vocals.
- Industry’s only Master volume with “Memory” and “Standard” mode options. “Memory” mode saves and recalls last volume level during next power on. “Standard” mode resets to zero level.
- Industry’s only master volume that can be remotely controlled by an optional ACT-32HR transmitter microphone directly instead of a separate remote.
- Retractable handle and rugged wheels make it amazingly easy to transport.
- Built-in storage compartment for 2 handhelds or bodypack transmitters.
- Wirelessly link 2 or more MA-808 systems for more sonic coverage (industry’s only MTM-92 trans-mitter module is required).
- Active limiter prevents speaker damage from loud signal spikes.
- Can be powered via AC power, battery or direct DC.
- Suitable for tripod, floor or desk mount.
SPECIFICATIONS
| Max. Power Output | 267 W: 190W (woofer)｜77W (tweeter) | ||
| Amplifier | Class D & Class AB | ||
| Sensitivity | Typical: 96 dB | Maximum: 111 dB | ||
| T.H.D. | < 1% | ||
| Frequency Response | 50 Hz ~ 18 kHz | ||
| Speaker | 1.5 ” Tweeter & 10 ” Woofer | ||
| Audio Inputs | Wired: XLR × 1, Ø 6.3 mm (1/4 “) × 1 Wireless: Up to 4 wireless microphones Audio Player: CDM-2︱DPM-3 Line-In: Unbalanced RCA jack | ||
| Bluetooth Connectivity | Yes | ||
| Audio Output | Unbalanced line RCA jack | ||
| Extension Speaker | Speak on output |
