The GPeR unit allows to extend Ethernet cable by additional hop (< 100 – 150 m to regular network devices, and up to 210 m to another GPeR unit) up to 1,500 m.
Handy for highrise buildings, multi-apartment buildings, with many floors and sections, where very long Ethernet cables might be a problem.
Maximium allowed length of CAT6 Ethernet cable between GPeR and power source/router is up to 100 m (depending on cable quality, high quality – up to 150 m).
Maximium allowed distance of CAT6 Ethernet cable between two GPeR devices is up to 210 m (depending on cable quality).

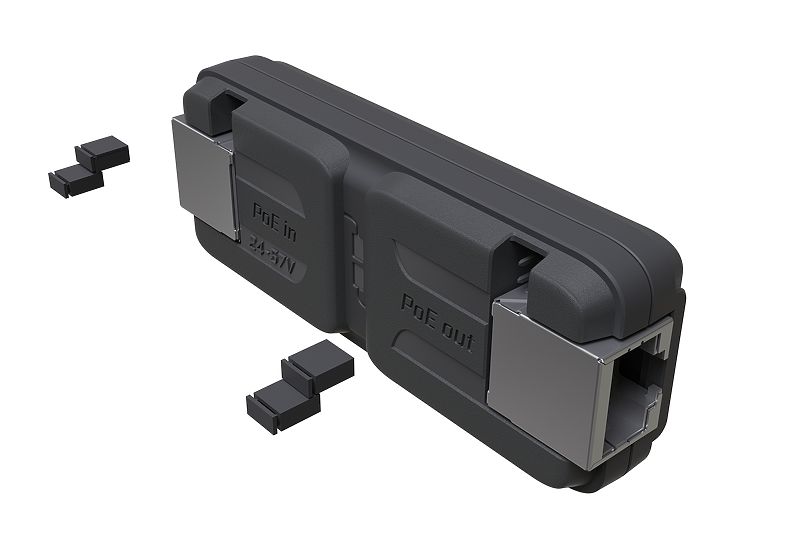

In case if the destination device does not support PoE-in powering, the PoE Passthrough can be disabled by manually removing all jumpers.
|10/100/1000 Ethernet ports||1|
|Number of 1G Ethernet ports with PoE-out||1|
|Max out per port output (input < 30 V)||0.7 A|
|Max out per port output (input > 30 V)||2 A|
|Max total out (A)||2 A|
|PoE in input Voltage||24-57 V|
|Tested ambient temperature||-40°C to 70°C|
