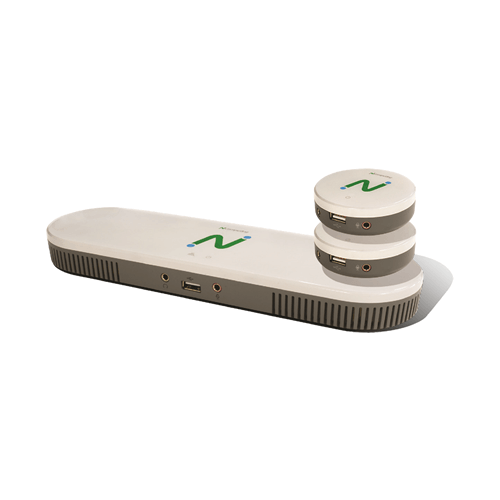

MX series MX100S Standard Edition 3-in-1 thin client kit




The NComputing MX100S provides a high performance, low cost computing solution for a simple, powerful & affordable desktop computing alternative.

The MX100S: Standard edition (3-users kit) comes bundled with NComputing vSpace Server licenses.

  • Slash acquisition cost by as much as 65%, maintenance cost by 80% and energy cost by 90%.
  • Powerful vSpace® Server desktop virtualization software included
  • Easy to set up, maintain, manage and secure

As the industry’s premier 3-in-1 thin client offering, each MX100S Standard Edition kit works with NComputing’s vSpace Server software to deliver a high quality, media-rich Windows desktop experience to 3-users. Architected as an end-to-end solution and built to be simple to deploy, operate and maintain, the hardware, software and protocol components work seamlessly to provide the best user experience. Multiple MX100S Standard Edition kits and a single vSpace Server can deliver Windows desktops for up to 45-users at fraction of the cost of PCs and typical thin-clients. Users don’t even know they are sharing a single computer and the whole solution can be managed by users with only basic IT computer skills.

Ideal for workgroup computing, classrooms, computer labs, training rooms, libraries and small business, the MX100S Standard Edition, delivers innovation combined and incredible value to Multiple MX100S kits can be deployed on an existing LAN infrastructure to deliver Windows desktops to up to 45 users from a single vSpace Server.

Benefit from superior multimedia capabilities, USB peripheral support and the highest number of users per host computer—all at a very affordable price. The economics improve even more with:

  • vSpace® Server’s ability to deliver Windows desktops to multiple users from a single computer.
  • With a single power adapter and network cable for all three, cables are reduced by one-third

MX100 rewrites new affordability standards in shared computing by slashing acquisition cost by as much as 65%, maintenance cost by 80% and energy cost by 90%.

UP TO 45 USERS PER HOSTFewer PC’s to manage and lower annual operating costs
HIGH QUALITY GRAPHICSSecond generation NUMO SoC device provides full screen video streaming up to 1920×1080 resolution
VSPACE SERVERSimple to install, easy to configure and fast to set up (complimentary licenses included)
CENTRALIZED MANAGEMENTSave time deploying and managing multiple vSpace Servers and client devices
SERVICE AND SUPPORTProvides the resources you need to maximize your technology investment and improve system uptime
SUPPORTED OPERATING SYSTEMSMicrosoft Windows *** — Refer to the support section at support for the latest supported versions.
PC HOST REQUIREMENTSSee recommended hardware configuration guide at


PROCESSORSecond generation Numo® 2 SoC provides full screen video streaming
SIZEPrimary client                    270mm (w) x 80mm (d) x 35mm (h)
 Satellite client                    75mm (w) x 75mm (d) x 25mm (h)
VIDEO RESOLUTION800×600, 1024×768, 1280×800, 1280×1024, 1360×768, 1440×900, 1920×1080*
AUDIO16-BIT Stereo DAC via standard 3.5mm speaker port
MICROPHONE16-BIT MONO microphone audio input via standard 3.5mm microphone port
MOUSE & KEYBOARDSupport for USB 2.0 mouse and keyboard devices (HID devices)
NETWORK10/100/1000 Mb/s Ethernet speed support (100Mb/s speed or higher preffered)
USB 2.0Primary clientx USB 2.0 ports for peripheral & keyboard/mouse
Satellite clientx USB 2.0 ports for peripheral & keyboard/mouse
WEIGHTPrimary client0.24 kg / 0.53 lbs
Satellite client0.06 kg / 0.13 lbs
KIT SHIPPING WEIGHT1.06KG / 2.34 LBS (includes 3 client devices, power adapter, documentation, 3

VESA mount plates and 2 USB A-B cables)

POWERInput: 100-240 VAC, 50-60 Hz ;Output: 12 VDC, 1.5 A;

Nominal power consumption: ~6 W (without peripheral USB devices)

FRONT LED INDICATORSPrimary client                      Power LED – Blue when power supply is ok

LAN LED – Solid blue when connected to LAN; blinking when communicating

Satellite client                       Status LED – Solid blue when connected to primary client
SATELLITE LINK CABLESUSB 2.0 Printer cable between the primary client and each of the satellite clients (2x 2 meter USB A-B cable includeed)
INTERNAL HWNComputing Numo2 System-on-Chip; Solid-state design, no moving parts, no fans, no local user storage; Embedded NComputing firmware (no local user OS)
RELIABILITYReliability (MTBF) >250,000 hours (calculated using Bellcore Issue 6 TR-332, Case 2, Part I at 40°C)
